This option allows you to group Codesets on a template. This allows you to consolidate multiple rows and also saves space. This can be only used with a Codeset Row type only.
• Highlight a Rule node and click the Template control.
• Click Add to add the Rule node to your template

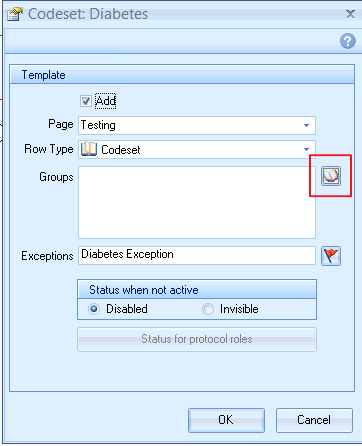

• After clicking Add and specifying a Row Type of Codeset; click the Groups browser icon

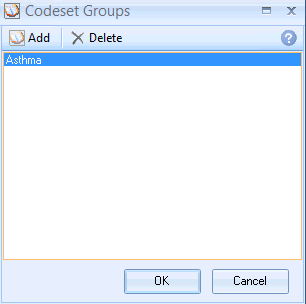

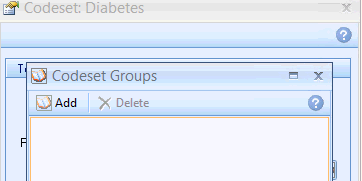

The popup form Codeset Groups appears
• Click Add

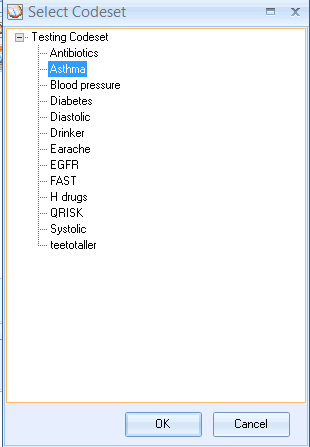

This will display the Codeset(s) that are used in your pathway that are currently used in rules
• Pick a Codeset and click OK
The selected Codeset then displays in the Codesets Group box. Repeat if more are required; otherwise click OK

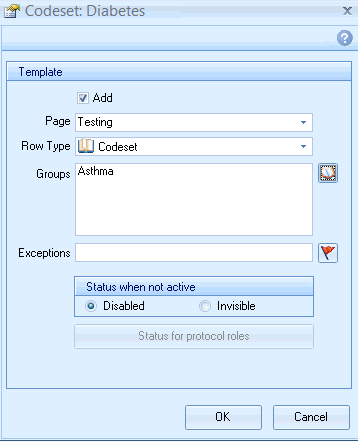

Once OK has been clicked the Codeset displays in the Groups box

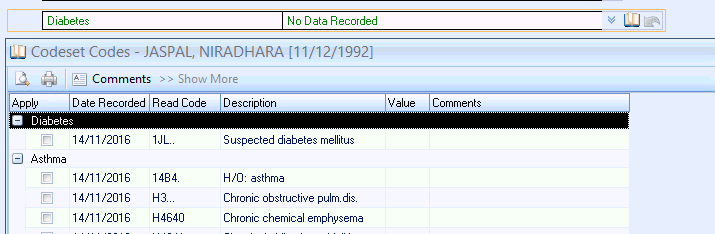

Clicking on grouped Codesets within a template.
