Select notification

The basic Select notification settings can generate 3 types of outputs:

1. A visual alert\ indicator when a patients record is being viewed.

2. A generated list.

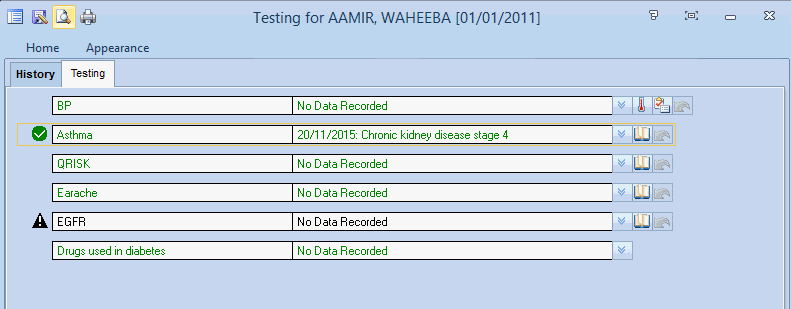

3. An alert \ indicator icon on a template.

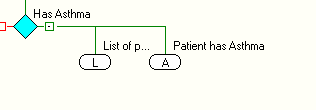

• Highlight the decision rule node where the Select notification is required

• Click on the Select icon in the Notification group items.

This will then generate a new notification.

• Click on the notification and the default description will display in the Alert/List Entry section at the bottom left of the screen.

• Description -  The indicator text that is visible for the selected notification output.

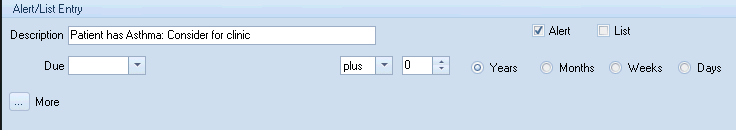

• Alert check box - When ticked the Description text will display in an indicator pop up window AND an alert icon can be made visible on the template.

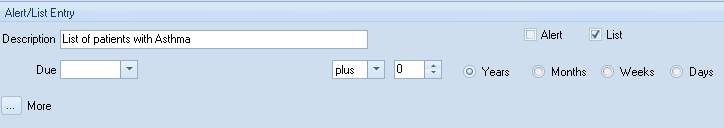

• List check box - When ticked the Description text will generate a Practice List based on the rule node it is connected to.

Note: if both boxes are unticked for the notification then an alert icon only can be made visible on the template.

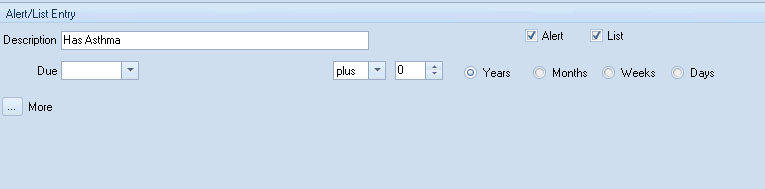

It is possible to have more than one notification in order to have different descriptions for each type of notification.

Configuring Notifications.
