Schedule - Ruleset Inline menu



The Schedule control allows developers to customise reports and extracts to alter dates on a rolling basis based on report requirements. This feature allows reports dates to automatically set to the start of a calendar month/ E.g. monthly, quarterly, 6 monthly etc.



The date set in the Schedule will be applied to the date criteria across all Rule nodes.



Example:

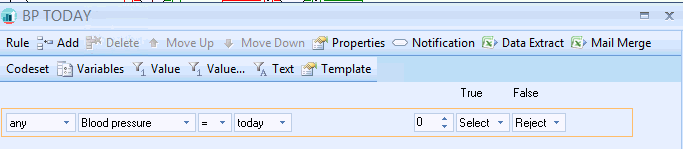

A Rule Node contains a simple Rule:- Any Blood Pressure taken today

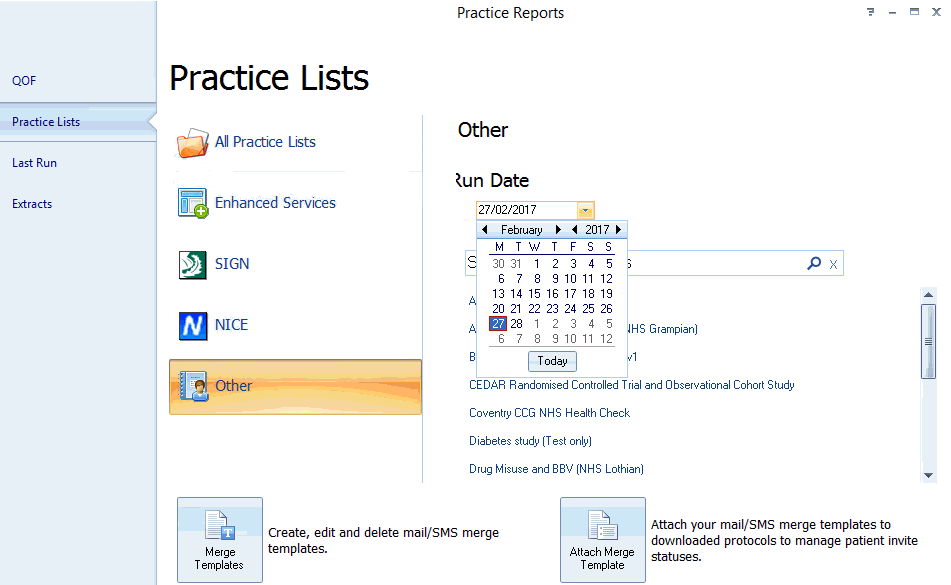

Today will be the date that the report is executed or the Run Date set in the Practice Lists screen.

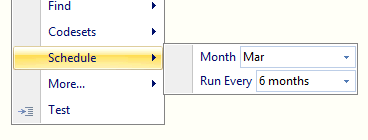

• Right mouse click on the selected Rule Node and select Schedule.

• Pick the Month.

• Select a run period from the Run Every drop down.





The above example shows that the start month is March and the Schedule is set to run every 6 Months.



In the example the report is run today - 01/02/2016.



For the selected Rule Node Any Asthma = Today. Today will be 01 September 2016 :-



  • March -
Report Date today = 01/03/2016 Month 1
  • April -
Report Date today = 01/03/2016 Month 2
  • May -
Report Date today = 01/03/2016 Month 3
  • June -
Report Date today = 01/03/2016 Month 4
  • July -
Report Date today = 01/03/2016 Month 5
  • August -
Report Date today = 01/03/2016 Month 6
  • September -
Report Date today = 01/09/2016 Month 1
  • October -
Report Date today = 01/09/2016 Month 2
  • November -
Report Date today = 01/09/2016 Month 3
  • December
Report Date today = 01/09/2016 Month 4
  • January -
Report Date today = 01/09/2016 Month 5
  • February -
Report Date today = 01/09/2016 Month 6
