The Clipboard group items allow you to Cut, Copy and Paste Rule nodes within a pathway and between pathways.
Copying Rule Nodes.
• Highlight a rule node in your pathway.
• Click the drop down arrow next to the Copy icon.
• Select either Node (Copies only the selected Rule Node) or Sub-Tree (Copies the selected Rule Node and every node linked beneath it) from the in line menu.
Pasting Rule Nodes.
• Click on the Rule Node where you want to position your previously copied Rule Node(s).
• Click the drop down arrow next to the Paste icon.
• Select one of the following options:
• as Select Child (Pastes the copied Rule Node(s) off the select stem of the selected Rule Node.
• as Reject Child (Pastes the copied Rule Node(s) off the reject stem of the selected Rule Node.
• as Sibling (Pastes the copied Rule Node(s) to the end of the branch the selected Rule sits on.
Cutting Rule Nodes.
If you use the Cut option on a selected Rule Node this will cut the Rule Node and all its connected Sub-Trees.

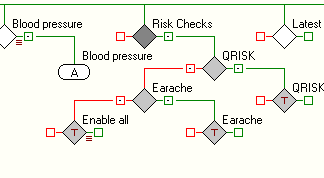

After pressing Cut, the selected Rule Nodes are indicated in grey.
To use clipboard items between pathways, you need to use the Window Group Items menu.
