Library - Ruleset inline menu

The Library command on the Ruleset Inline menu allows the developer to add prebuilt Rule Nodes based on the QOF Register Library. This Ruleset Node is read only so the Rules within the node cannot be changed.

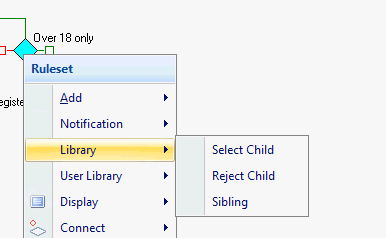

• Right mouse click on the selected Rule Node and select Library.

• Select either:

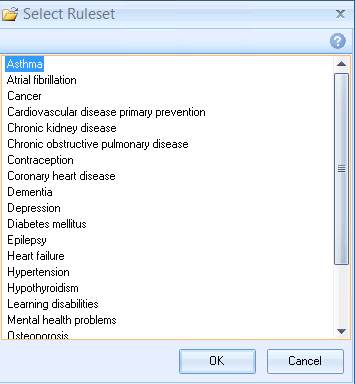

Once the Node type has been selected, the Select Ruleset pop up window will appear.





• Pick the QOF Ruleset you wish to create.

• Click OK.





The selected Ruleset Register Node then appears. The Register is denoted by a square bar with displaying the name.



To view the Rules within the Node (Read only)



• Highlight the Node.

• Click on the Split Control in the Window group item and select the Ruleset Builder option from the inline menu.

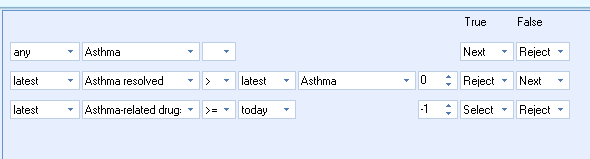

This will display the Rules used from the QOF Library within the Designer Pop up.
