Connect - Ruleset inline menu

The Connect Control has 2 areas:

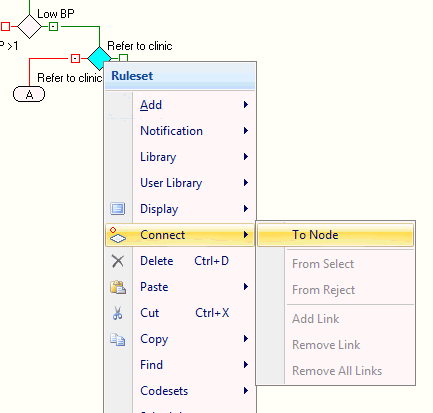

Connect To Node

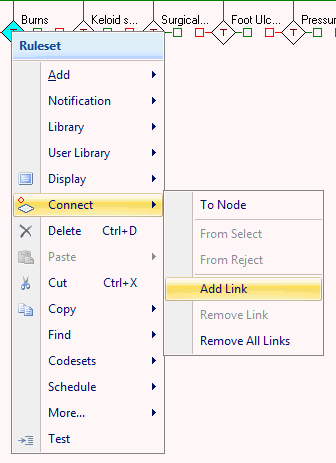

Connect Add Link



Connect To Node is used to connect a Rule Node to another, anywhere in a Pathway. This is useful when there are multiple rules in a single pathway that result in a single Outcome. Rather than replicating the same outcome (Rules), the developer connects all the Rules to the resulting Outcome. This makes Rules easier to maintain by avoiding duplication.









The Connect Add Link function allows the Developer to connect to a Care Pathway created using Pathway Designer.



Connecting to a Care Pathway built in Pathway Designer.
